  Available Sizes of Fibre Bearings (Textolite Bearings & SRBF Bearings)


We are manufacturing Fabric Bearings for the past 20 years. We are manufacturing high Quality products . We have exported our quality fabric products to various countries Like:- Pakistan, Kenya, Nepal, Sri Lanka, Bangladesh, UAE, Botswana, etc.An dwe also have a big market in INDIA.

Chemistry Of Sudershan Fibre Bearings

aa

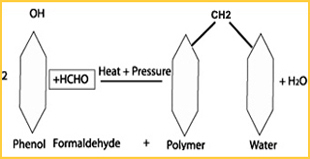

Phenol and Formaldehyde under heat and pressure forms a highly cross linked Condensation Polymer, one step in POLYMERISATION being.
aa
aa
That is how Fabric reinforced Resin under heat and pressure is cured and polymerized so that it assumes a different chemical composition, becomes hard and will not deform when again subjected to heat.

Physical Properties of Sudershan Fibre Bearings
aa
Specific Gravity
:
 1.36 g/cc
Ultimate Tensile Strength
:
 10,000 psi
Ultimate Compressive Strength
:
 40,000 psi
Ultimate Shearing Strength
:
 9,000 psi
Flexural Endurance Limit
:
 20,000 psi
Impact value (IZOD)
:
 1.9 ft. 1 bs
Brinell Hardness M 100
:
 38
Thermal Conductivity
:
 0.21 Btu/hrxsq.
Shore Hardness (Rubber Hardness Tester)
:
 90 Degree A
Young's Modulas
:
 106 psi
Thermal Coefficient of Linear Expansion
:
 0.000012 inch / inch - deg F

Operating Limit
aa
Load Capacity
:
 6000 psi
Max Operating Temperature
:
 90 Degree C
Maximum Speed
:
 2500 FPM
PV Limit
:
 15 Million FPM psi
aa
Where P = Pressure psi & S = Surface Speed FPM



ALSO, WE CAN MANUFACTURE FIBRE BEARINGS AS PER YOUR DRAWING AND DIMENSIONS.
